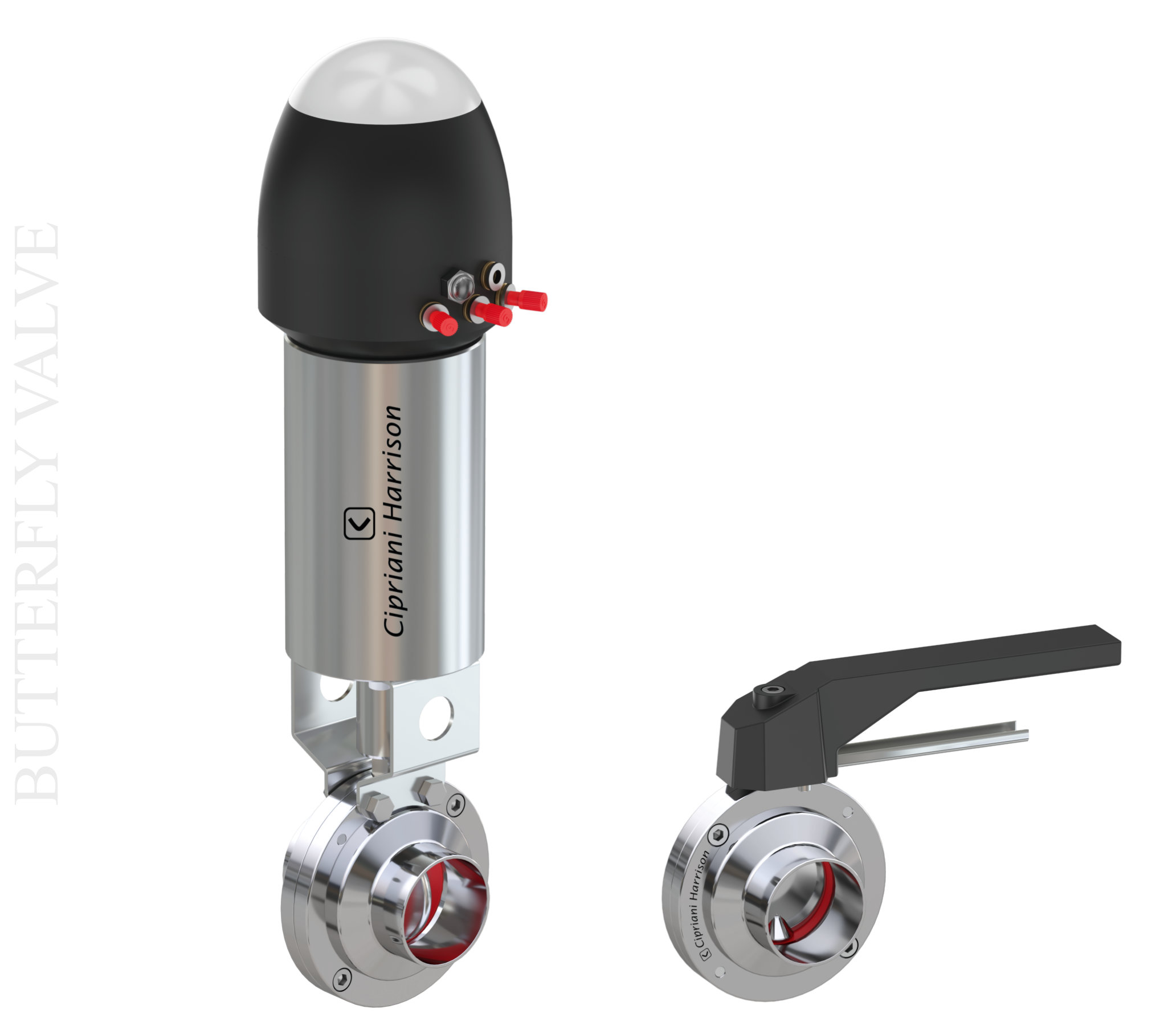

Butterfly valves have been a vital system component in the hygiene industry for decades.

They are relatively straightforward components developed, designed and manufactured for installation in pipelines for shutting off a flow of liquid.

Butterfly Valve is the most versatile valve solution which can be used in modern process technology with substantial opening & can ideally handle low & medium viscous products.

It is widely accepted in the different process application for Water, Steam, Food & Beverage, Cosmetic, Bio-Pharma & pharmaceutical industry.

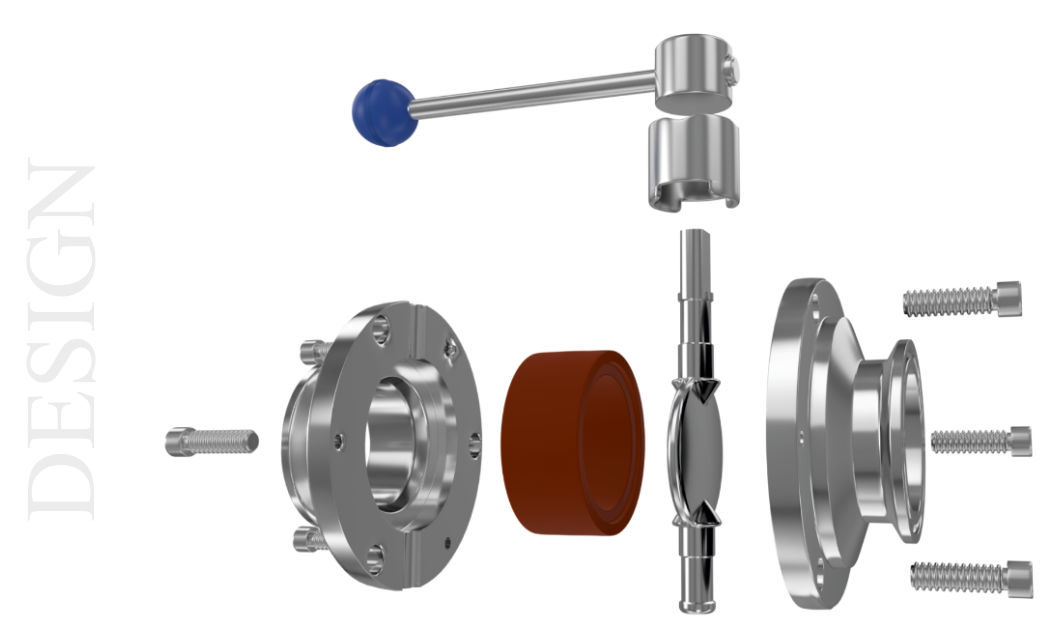

Cipriani Harrison Butterfly valve are manufactured from forging process.

The flange & disc of our valves are manufactured by a forging route, giving it a superior grain structure.

The valves are machines and polished to achieve Ra<0.8µm.

This complements to the robust and more reliable design.

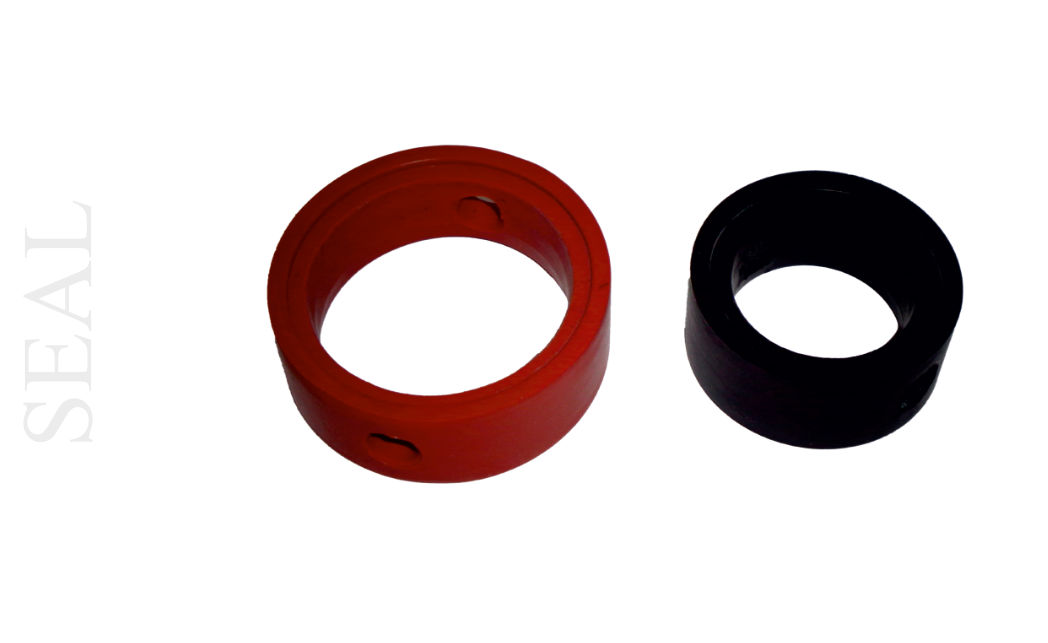

Cipriani Harrsion’s Butterfly Valve are available with comprehensive range of seal option, to fit in the required environment.

Different options of seals are available to suite different thermal environment and chemical resistance, intern increasing the seal life.

Cipriani Harrison has a special designed PTFE seal, to suite more aggressive media.

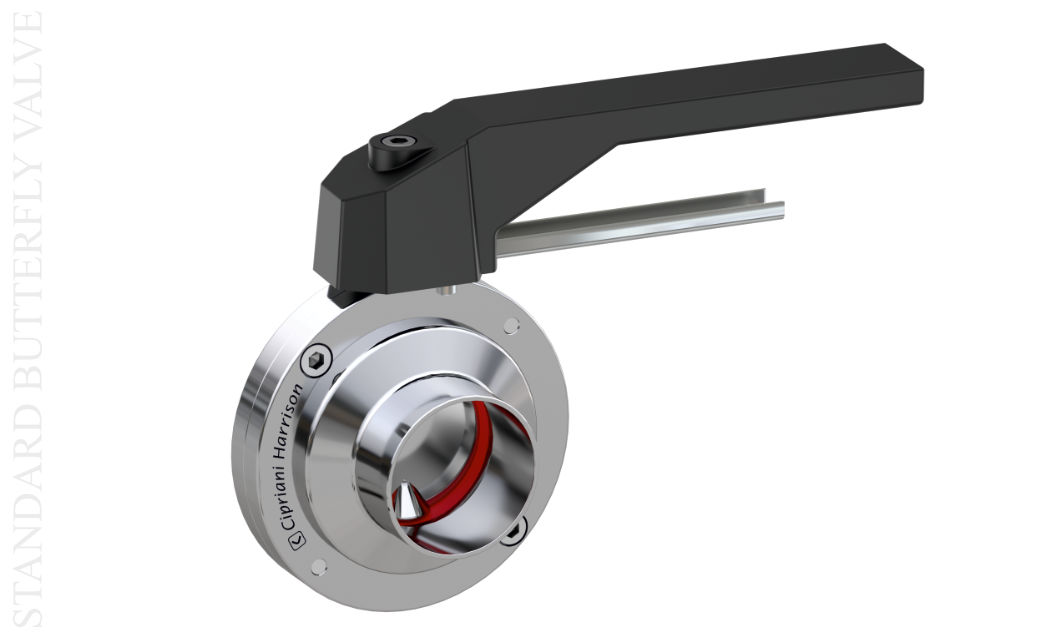

Cipriani Harrison Butterfly Valve are available with wide range of manual handle & pneumatic actuators.

Suitable handle can be selected based on the end application, for just opening & closing or multi position or precession manual control.

Different type of Pneumatic actuators are available for different media and pressure.

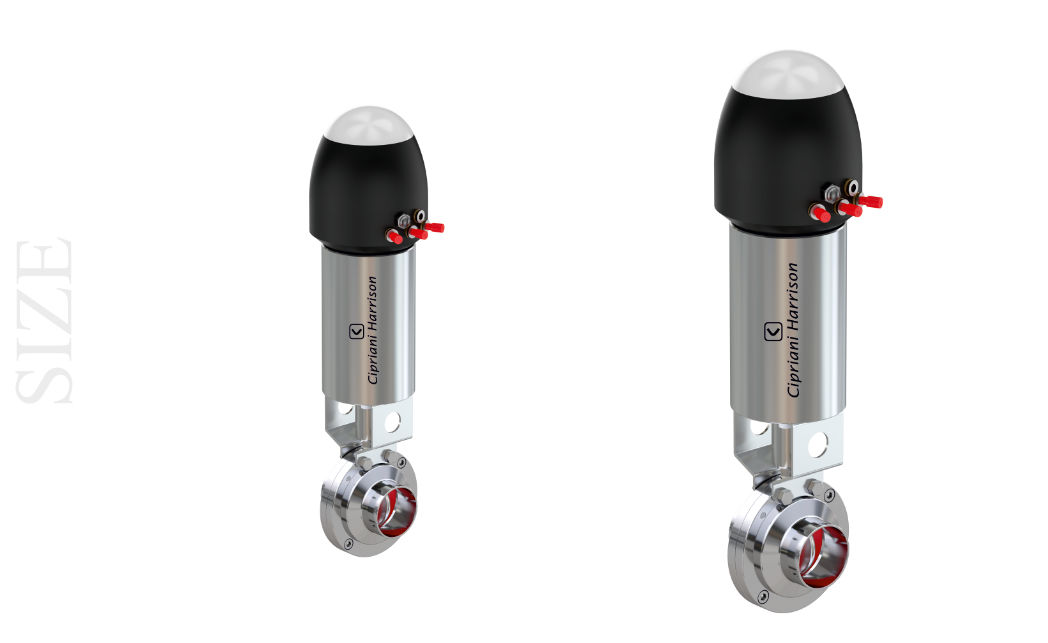

Cipriani Harrison manufactures Butterfly Valve to meet a wide size spectrum.

For smaller needs the size ranges from fractional size of ½” to larger size up to 8”.

All options available for all sizes.

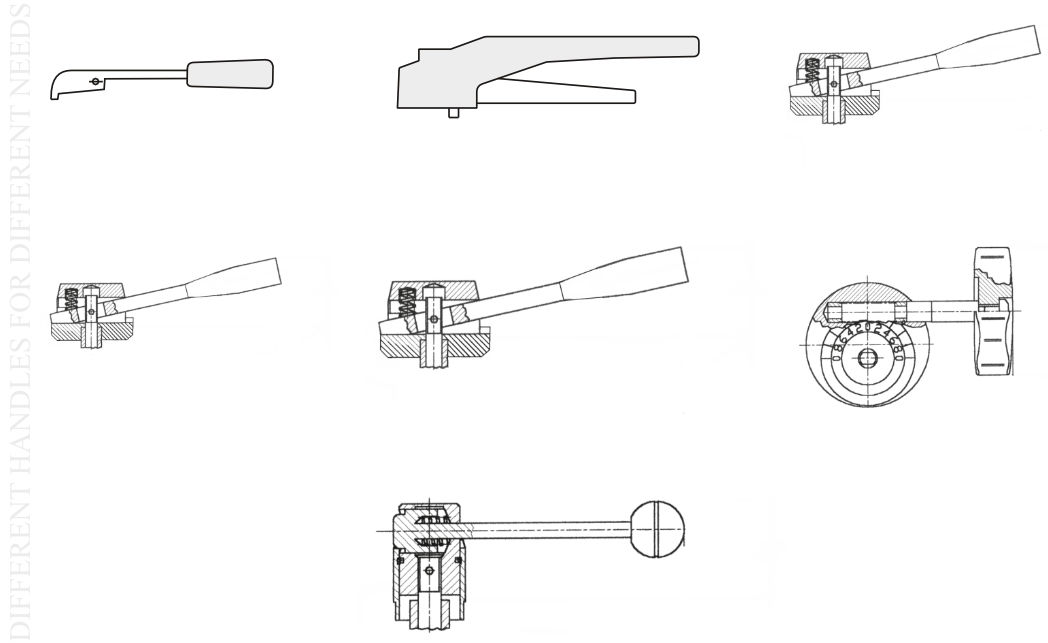

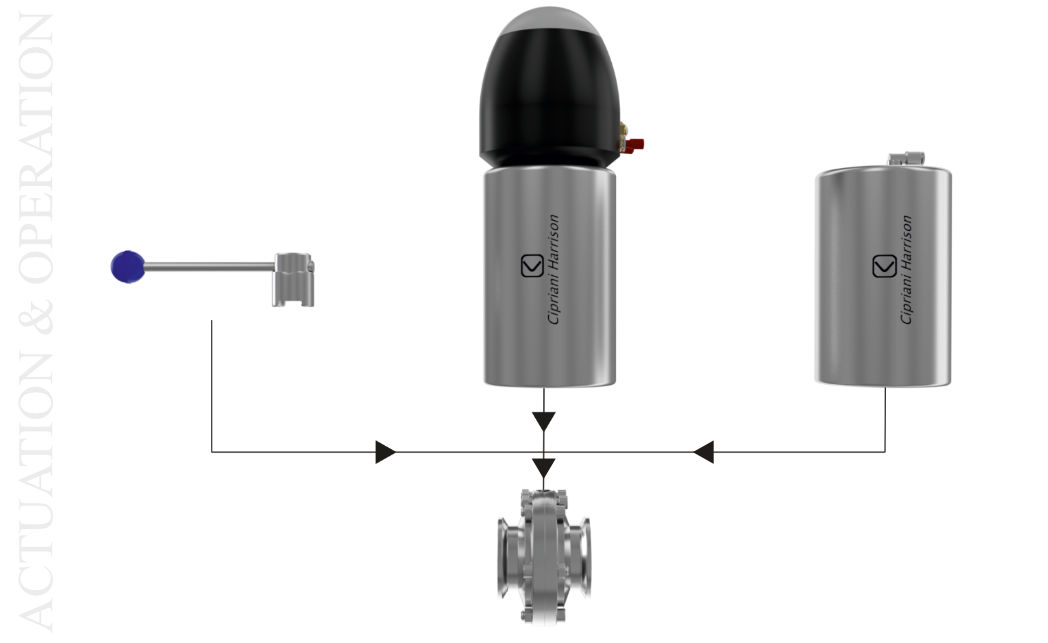

Cipriani Harrison Butterfly valve are available with quite elaborative options of handle depending on operators ease and need of the application.

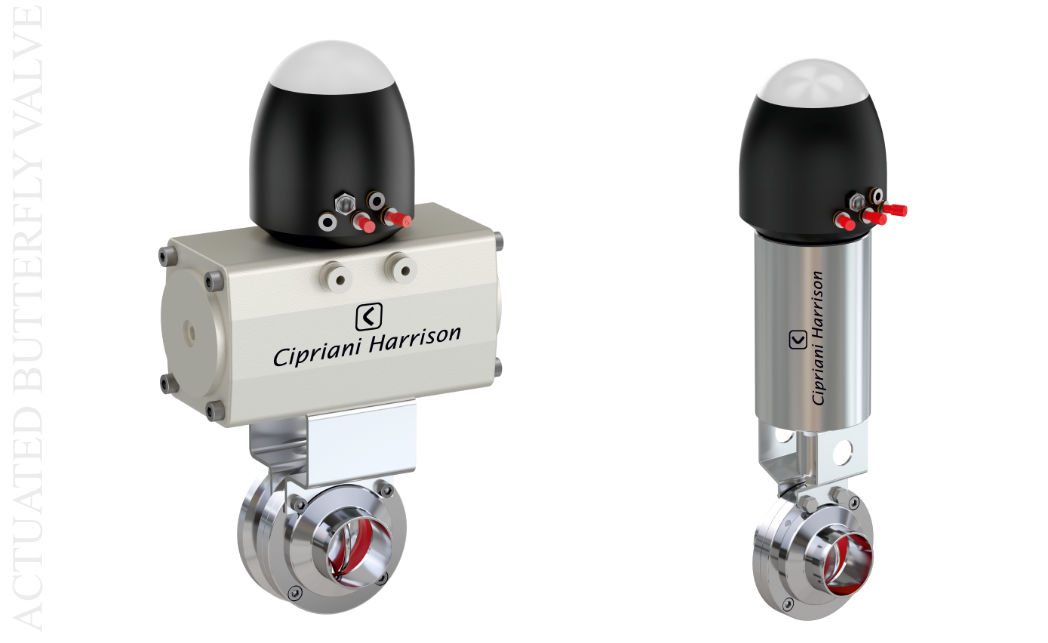

Cipriani Harrison Butterfly valve are available a maintenance free pneumatic actuator.

A wide selection of actuators are available featuring horizontal or vertical actuator installation, fail safe spring return actuator or double acting pneumatic actuator.

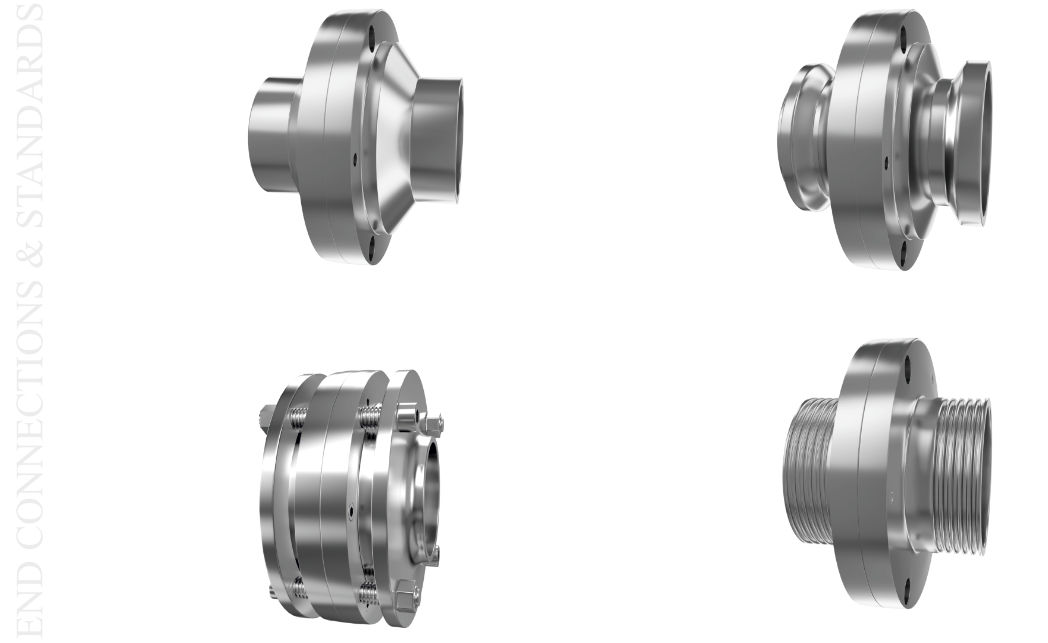

Cipriani Harrison Butterfly valves are available with a wide array of end connection like Weld End, Sanitary Clamp End, Union or Threaded End, I-Line or Intermediate Flanged End Connection.

The valves are available in different international standards like ISO, DIN, RJT, IDF, etc to meet different regional needs.

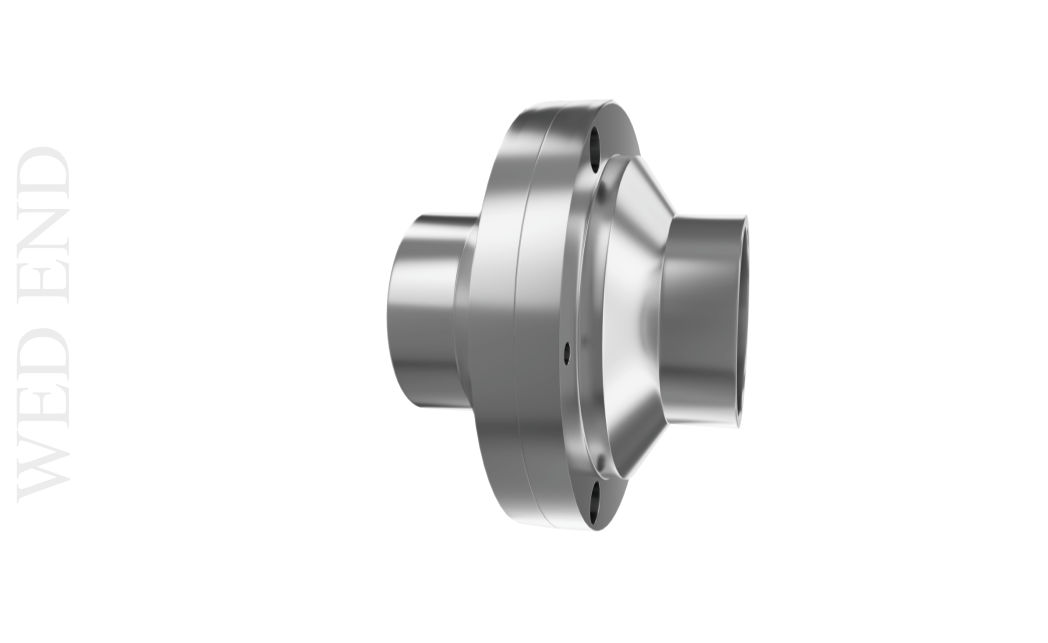

This valve can be directly welded to the Pipeline.

Available in different sizes and Different standards.

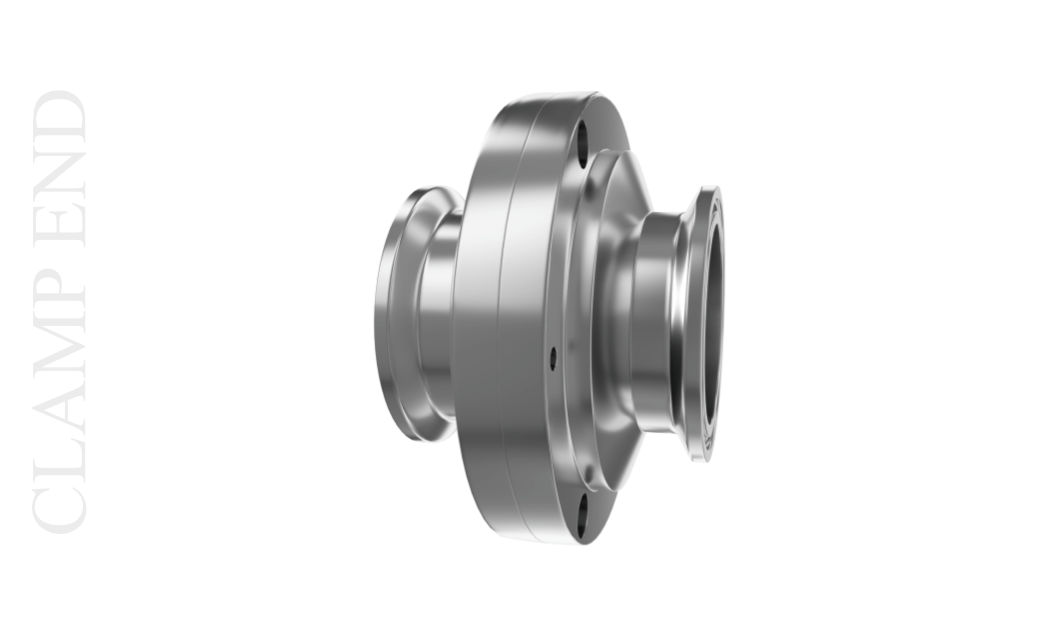

This valve has a sanitary ferrule connection to clamp it with counter sanitary ferrule using a clamp with a compatible sanitary gasket.

Available in different sizes in DIN or ISO standards.

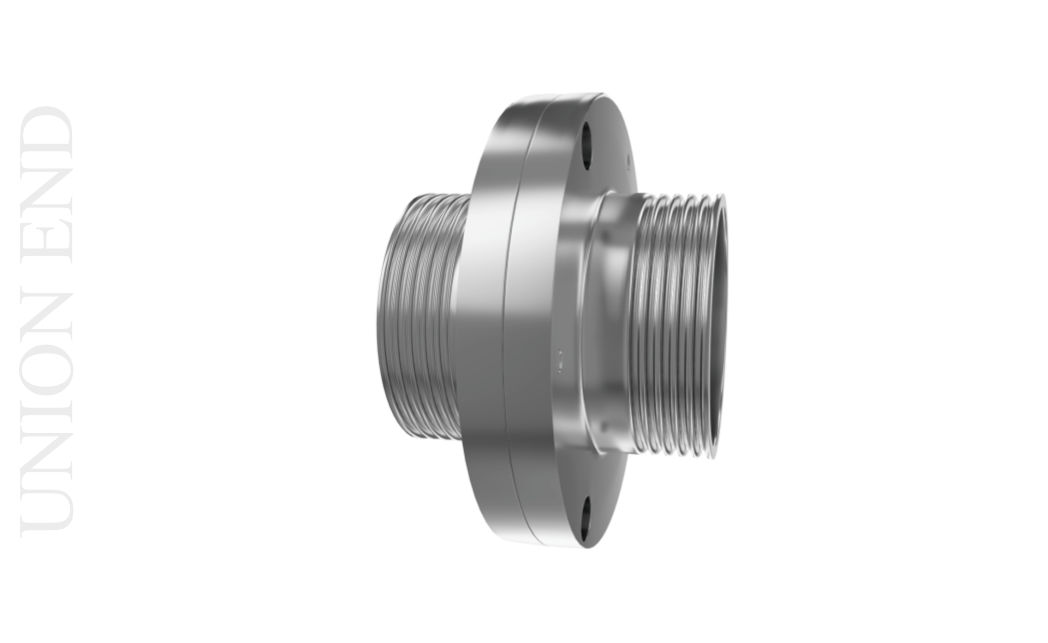

This valve has a Union connection i.e. Either a male threaded connection or a female liner to adopt the counter Connection.

Available in different sizes to suite different standards.

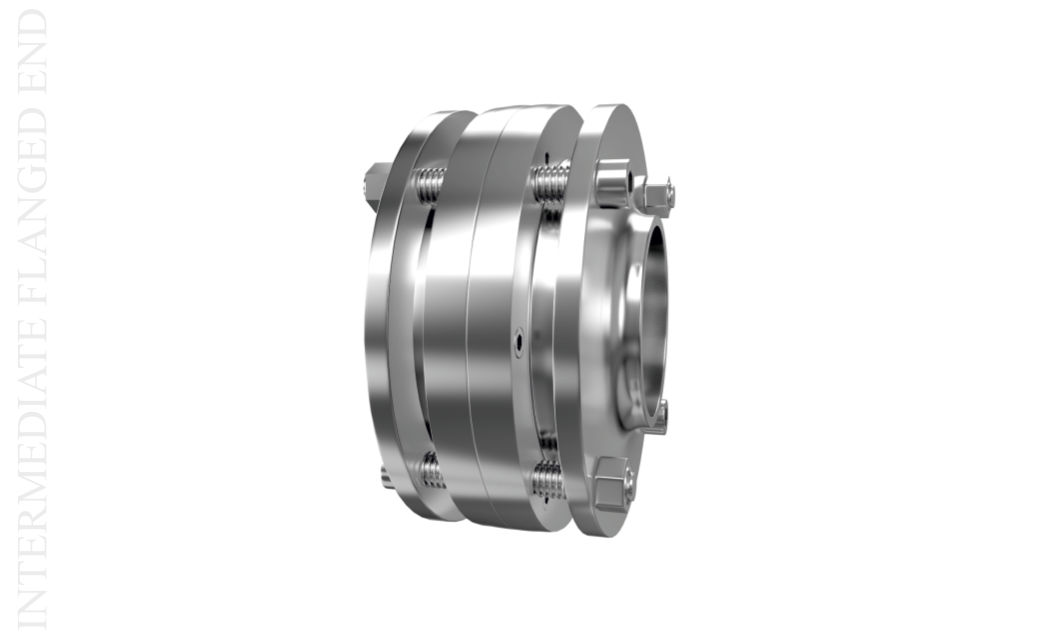

This valve has two auxiliary flanges which holds the parent butterfly valve with help of studs.

The auxiliary flanges have O-ring which buts & seals to the parent butterfly valve flange face flushing the surface for no dead pockets.

This design is ideally suited for a insulation needing a full proof and hassle free easy to maintain valve.

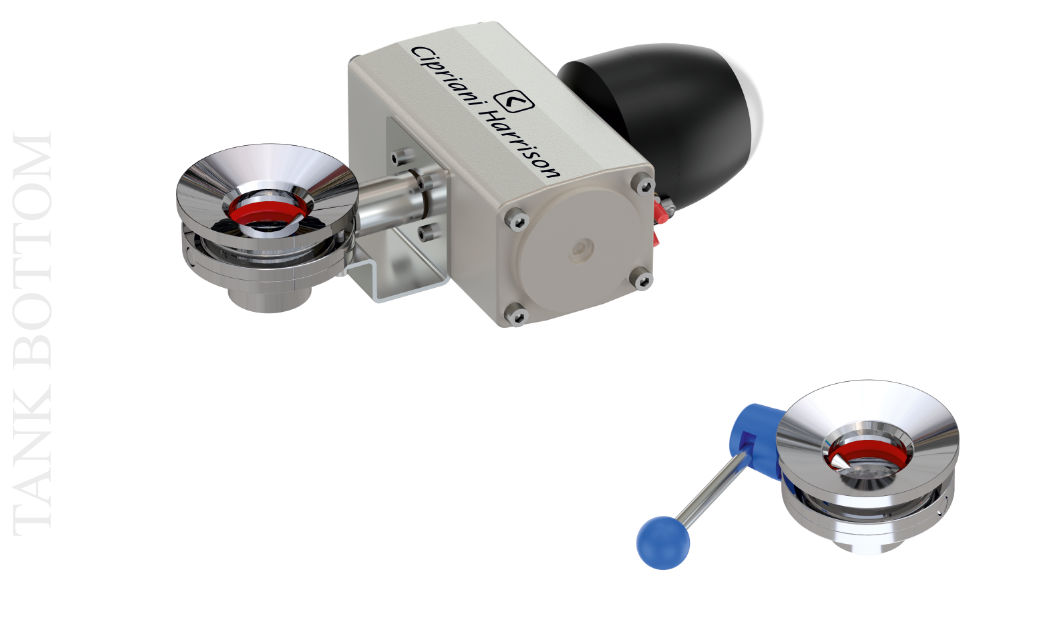

This valve is ideally suited for tank bottom or tank outlet application.

This valve has a tank bottom flange with a self-draining radius ensuring no product hold-up in the flange.

Available in different sizes, standards and mode of actuation.

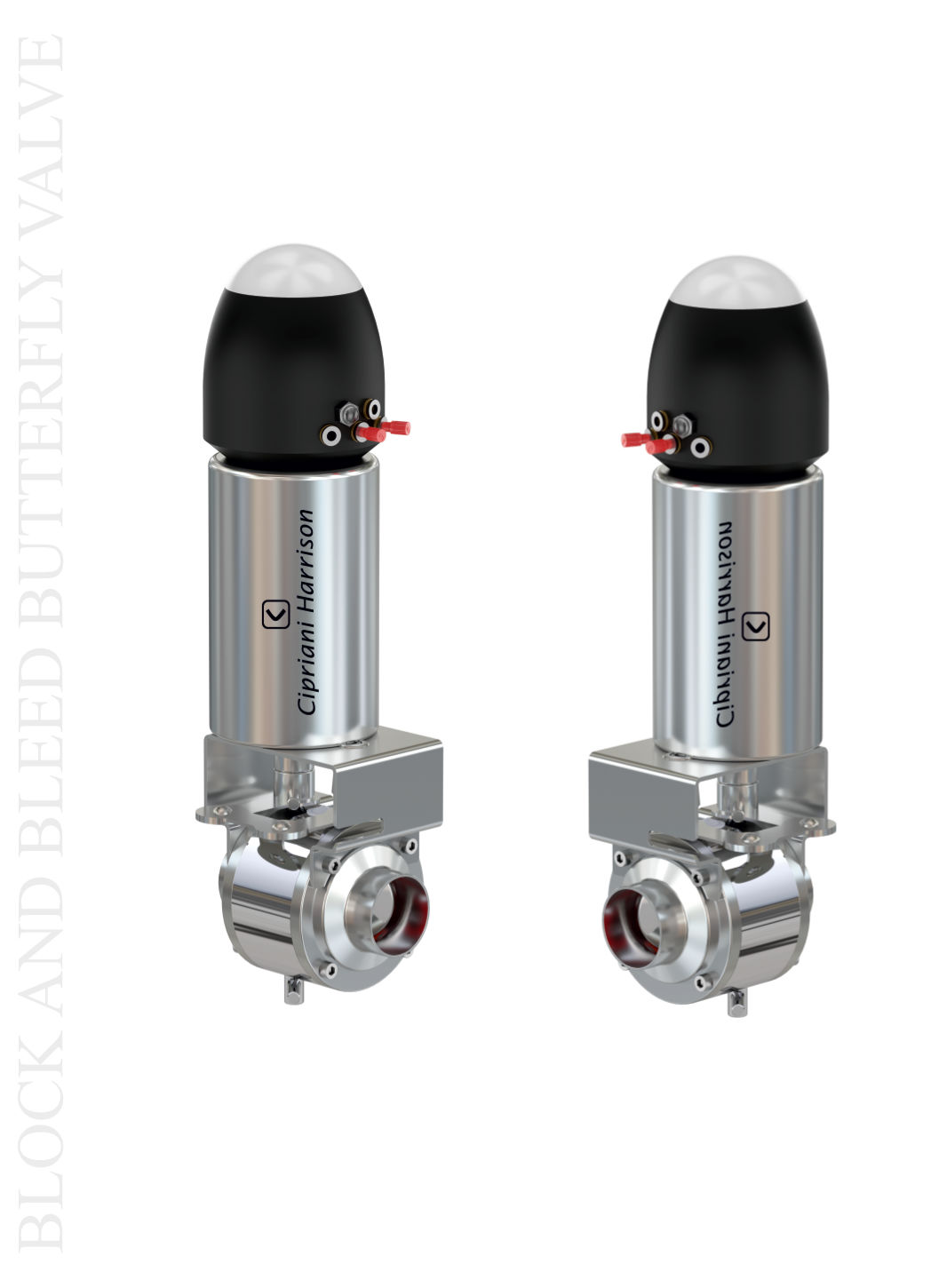

(Also known as Leakage Butterfly or Mix-Proof Butterfly Valve)

This valve is used to securely separate two non-compatible media.

This valve comes with two disc separating the two non-compatible media, with help of two individual seals.

It has a separate leakage chamber with a spring loaded valve arrangement.

When the valve is closed i.e. two media are separated at that time the leakage.

valve is kept in open condition with help of a link.

So, if there is any leakage, the media would come out from the leakage chamber.

When the valve is opened and the two media are allowed to intermix or flow to the opposite port at that time the leakage chamber valve is in closed condition.

This valve is available in various end connection, standards and can either be manual or pneumatically actuated.

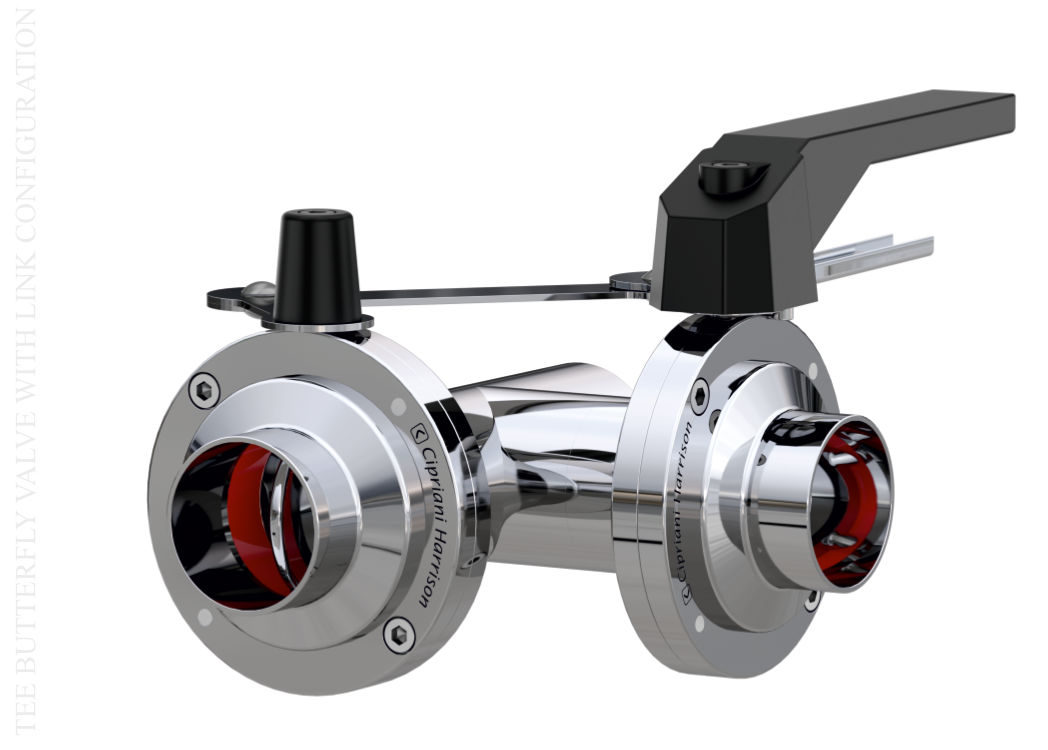

This valve is ideal for flow diversion purpose.

The butterfly valves are mounted in a Tee pattern for the allocated purpose of diversion.

One can either individually & independently operate the valves or it can be operated through a Mechanical Link arrangement.

In a mechanical link arrangement, two valves or all the three valves can be operated together by just a single lever or an pneumatic actuator.

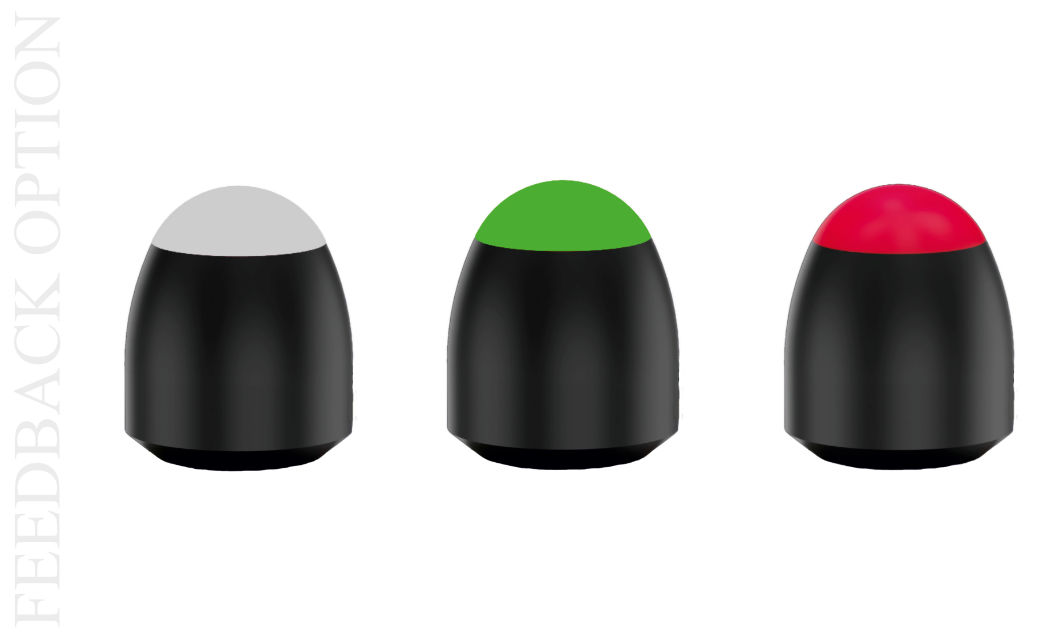

Cipriani Harrison Butterfly Valve are available with different feedback option. From a simple open & close sensor feedback or 24V DC Direct I/O to more sophisticated AS-i protocol, as few options.
