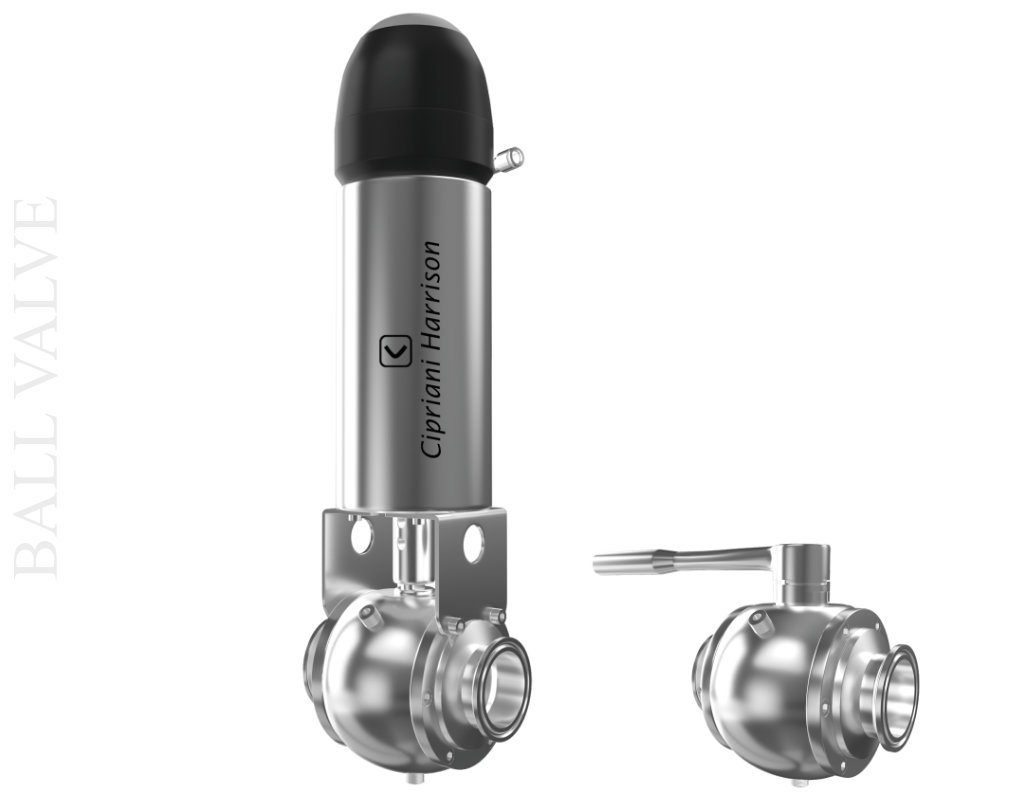

Sanitary Ball valve is used process piping system for either isolation or diversion of the fluid, manually or automatically operated.

A ball valve is constructed with a full bore or full port design with zero flow restriction making it an viscous or particulate liquid.

Cipriani Harrison Ball valves are available with different version to suite its respective application.

The full bore design compliments effective cleaning and can also make it suitable to be used for product recovery system handling wide range of product viscosity.

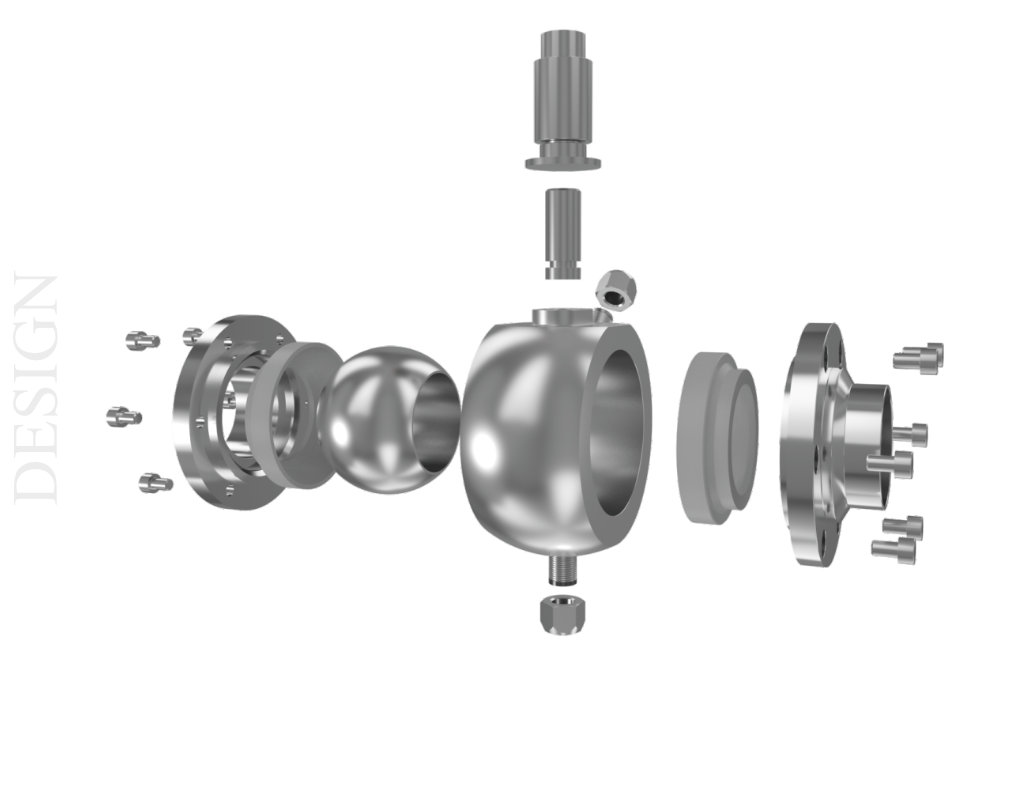

Cipriani Harrison Ball valve is made up of forged precision machined ball with a full port, assembled inside a valve body with two flanges.

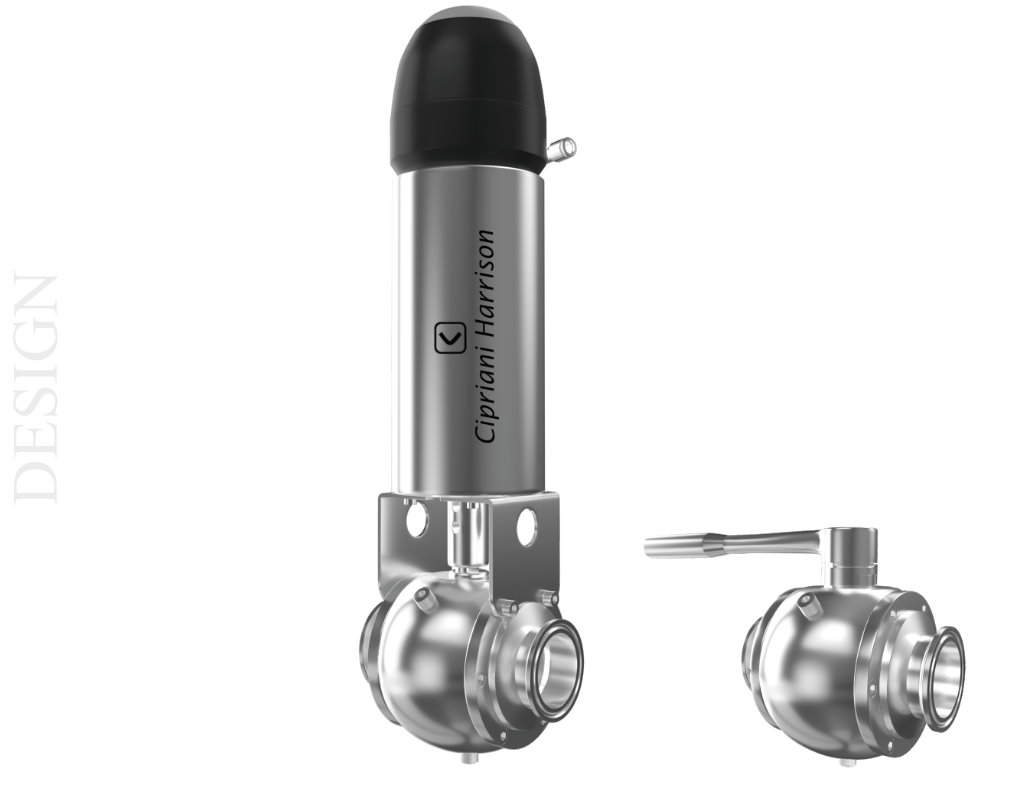

Cipriani Harrison 52-Series Ball valve is made from forged raw material.

This ball valve has a three piece construction consisting of a body and the two flanges.

The ball is precisely located inside the body, which can be either cavity filled or give with purge ports.

Cipriani Harrsion’s Ball Valve are available with comprehensive range of seal option, to fit in the required environment.

Different options of seals are available to suite different thermal environment and chemical resistance, intern increasing the seal life.

Cipriani Harrison has a special designed PTFE seal, to suite more aggressive media.

Cipriani Harrison Ball valves are available with purge port for cleaning the cavity formed between the ball and the body in the ball Valve.

During the cleaning cycle the cleaning fluid is passed through the purge port which would clean the cavity.

if the user do not intend to have the separate Cleaning of cavity with the Purge ports, in such Cases the cavity can be partially or fully filled With a cavity filler.

This cavity filler is manufactured Out of food grade PTFE which ensure no residual Products gets trapped inside the ball valve.

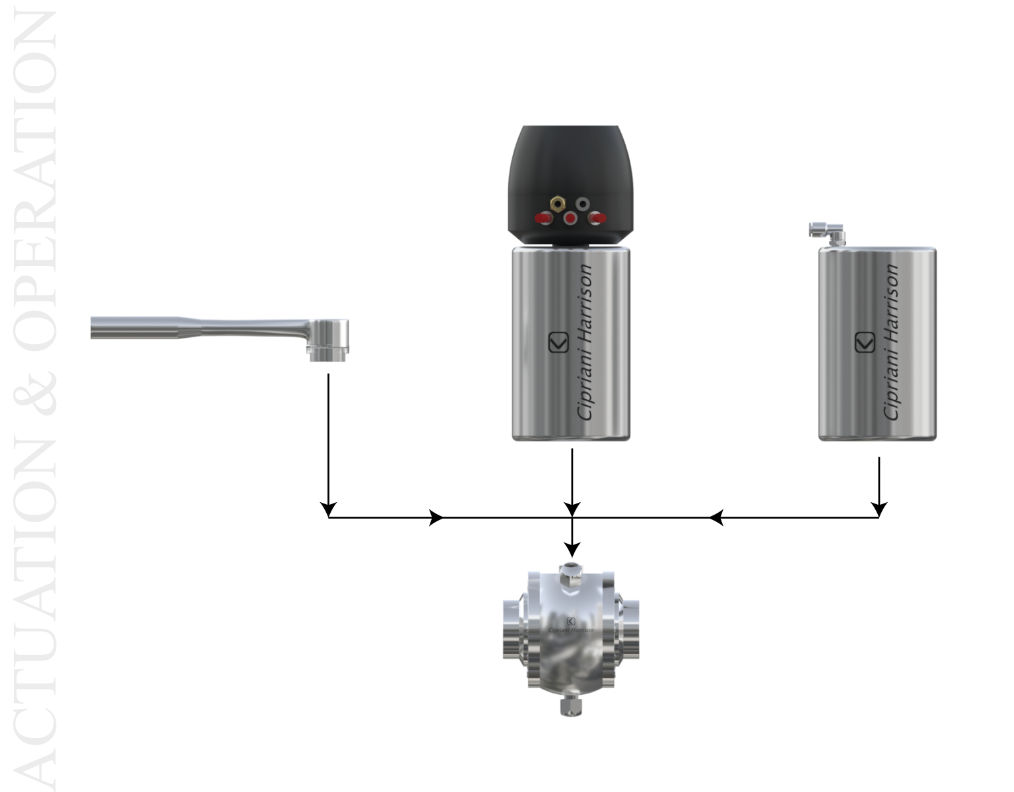

Cipriani Harrison Ball Valve are Available with different manual handle & pneumatic actuators.

Suitable handle can be selected based on the end application, for either just opening and closing the valve or can be equipped with multi position handles.

Different type of Pneumatic actuators are available for different media and pressure.

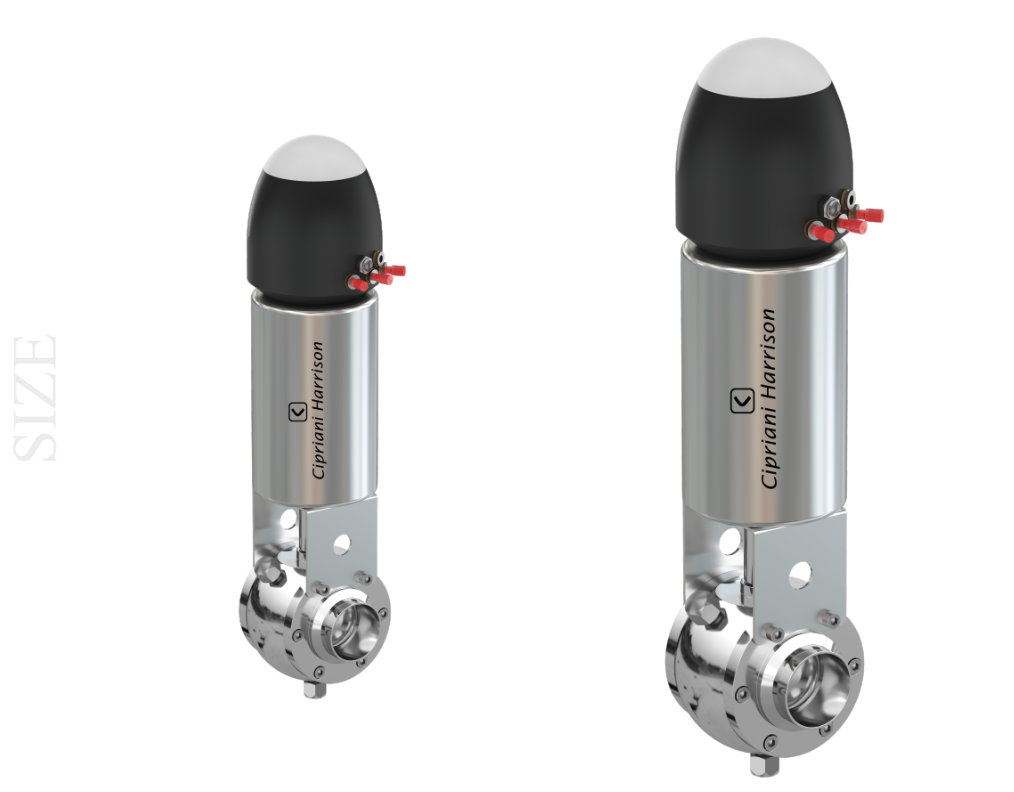

Cipriani Harrison manufactures Butterfly Valve to meet a wide size spectrum.

For smaller needs the size ranges from fractional size of ½” to larger size up to 4”.

All options available for all sizes.

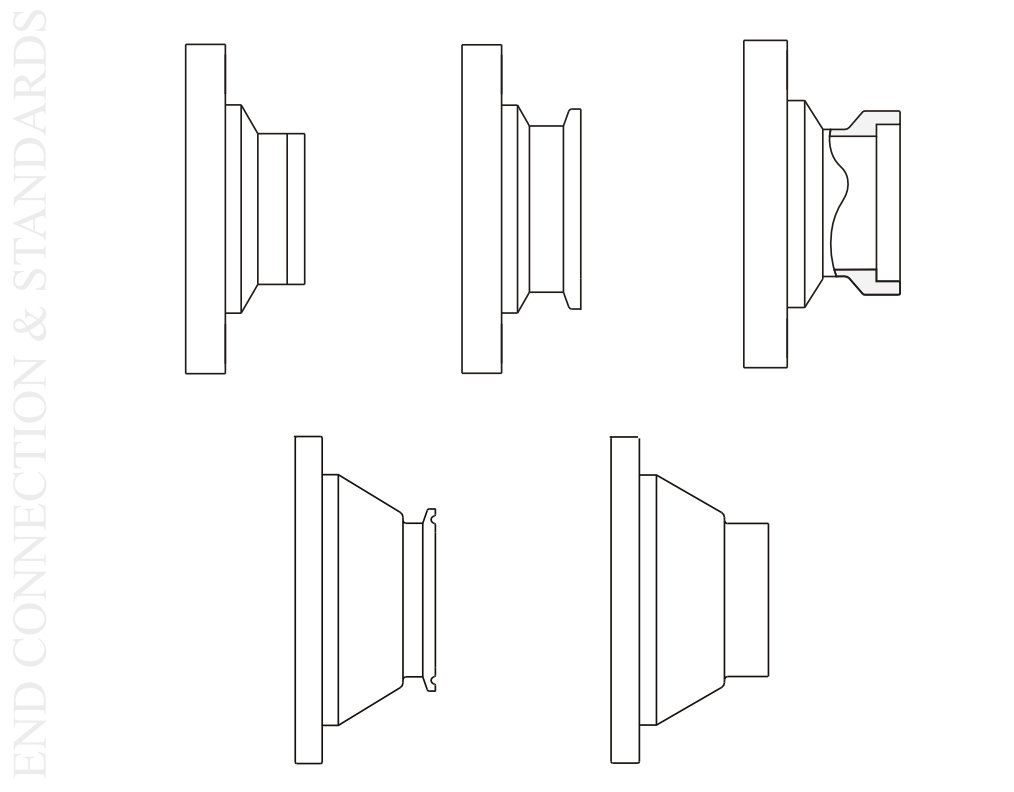

Cipriani Harrison Butterfly valves are available with a wide array of end connection like Weld End, Sanitary Clamp End, Union or Threaded End, I-Line or Flanged end connection.

The valves are available in different international standards like ISO, DIN, RJT, IDF, etc to meet different regional needs.

Cipriani Harrison Butterfly Valve are available with different feedback option.

From a simple open & close sensor feedback or 24V DC Direct I/O to more sophisticated AS-i protocol, as few options.
